24V LED Transformer - Magnetic 40W | 60W | 96W | 150W | 200W | 300W

Description

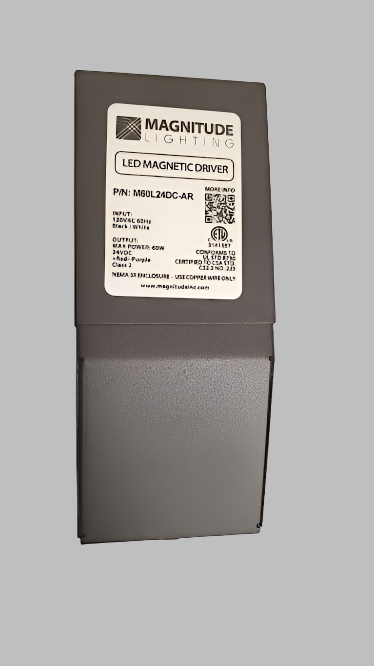

24V LED Light Transformer (Magnetic)

Low Voltage - Dimmable - Indoor/Outdoor Use

This low-voltage, dimmable series of LED transformers is flicker-free and are suitable for any 24V LED strip light project. This 24V driver works best with our IP20 PRO Series,IP20 COB Series, IP54 Silicone Coated Series, IP67 Waterproof Series, and Ultra Flat Under Cabinet Light Bar Series.

Available in various wattages 40W - 300W, this LED transformer can be operated with any magnetic low voltage (MLV) wall-mounted dimmer that is available online or at any hardware store (see dimmer compatibility list).

Driver Selection

Step 1: Determine Total Wattage

Calculate the total wattage of the LED strip lights you plan to use. This is done by multiplying the wattage per foot (or meter) of the strip by the total length you'll need.

For example, if your strip uses 5 watts per foot and you need 20 feet, the calculation is:

Total Wattage = 5 watts/foot × 20 feet = 100 watts

Step 2: Add a Safety Margin

To ensure reliability and prevent overload, it's wise to add a safety margin of 20% to your total wattage. This means you will need a transformer that can handle:

$\text{Required Transformer Capacity }=\text{Total Wattage }\times 1.2=100\text{watts }\times 1.2=120\text{watts}$

Therefore, in this example, you should select a transformer with at least 120 watts capacity.

*Additional Example: for 16.4ft strip = 50 watts x 1/2 = 60 watt driver

Features

• 24V DC driver
• IP65 rated for indoor/outdoor use
• ETL listed
• Compatibility – There are no minimum load requirements when used with a dimmer. The magnetic dimmable drivers cause no flicker or any other side effects that can result from a lack of synchronization between voltage mode drivers and PWM low voltage drivers in the light fitting.
• Perfect Dimming – Fully compatible with low voltage dimmers, in contrast to voltage mode drivers that balance the voltage in the system and prevent the dimmer from working.
• Lower Power Consumption – 15% more efficient, due to the avoidance of unnecessary double conversion in the circuitry.
• No RFI Issues – Operates at a perfect 60Hz sinus wave, therefore they produce no radio frequency interference whatsoever.
• LED Magnetic Transformer Full Specification Sheet
