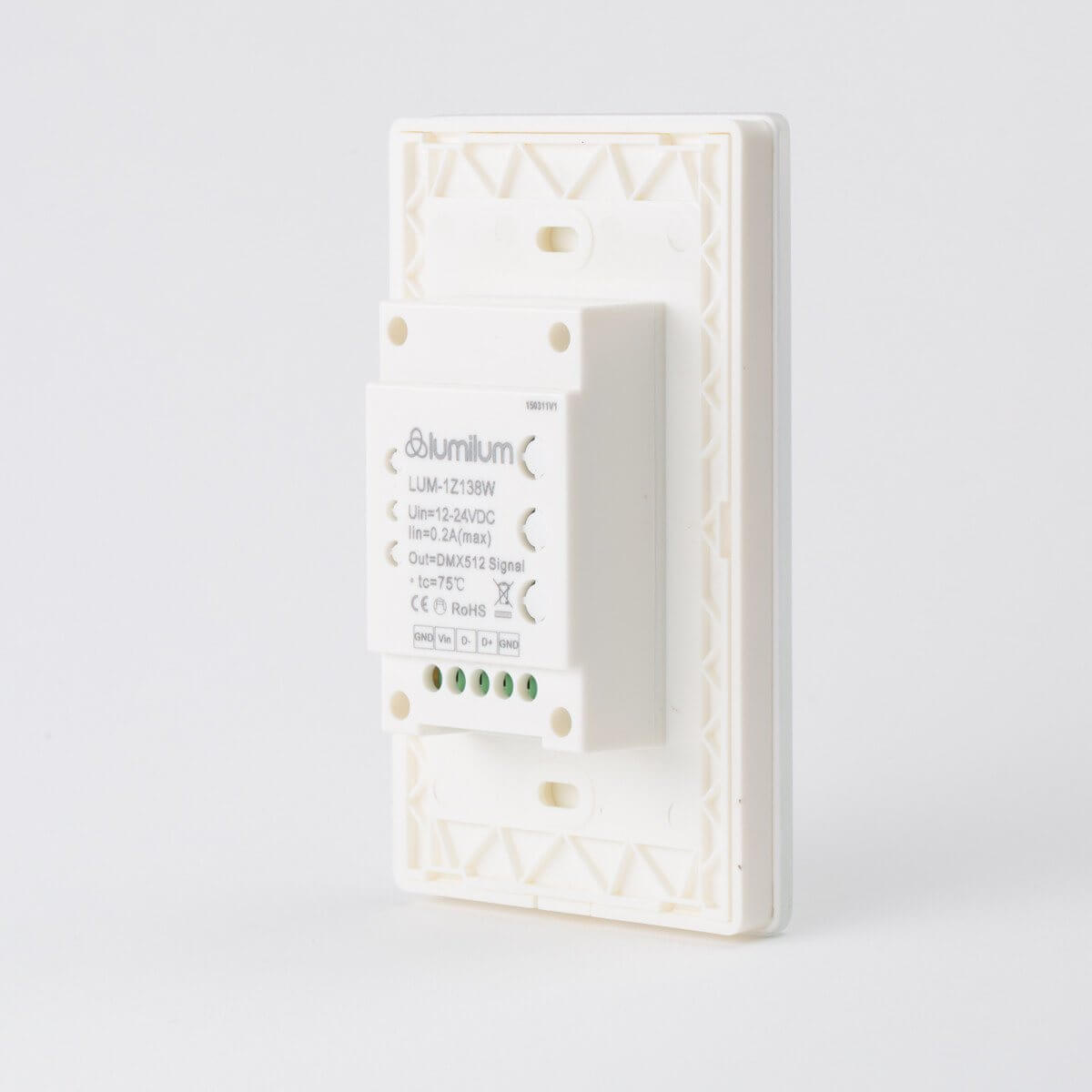

This In-Wall Mounted RGB Controller Panel can control 3 zones of 24V RGB LED Strip Lights. This wall RGB color changing light controller can be connected to wireless receivers (LUM-RF1009) or alternatively be hardwired to DMX Receivers (LUM-DMX212). The controller can be mounted using a standard wall switch or outlet box. Receivers are assigned to one of 3 zones and can be controlled from this In-Wall Mounted Controller be pressing 1, 2 or 3 depending on the zone that needs to be controlled. For example, you may have a cove light in a room assigned as zone 1, a second cove light in the same room assigned to zone 2 and TV back-lighting as zone 3. All 3 zones can be independently controlled from this In-Wall RGB Controller.
RGB LED Strip Controller Contents:
Control low voltage LED lights in 1-3 zones using a single controller
MPN/SKU: LUM-U1228W
Safety Certifications: ETL Certified
Input: 12-24 VDC
Output: 424MHz / 868MHz
Measurements (L/W/H): 2.95in x 1.15in x 4.72in
Weight: 9.4 oz
Full Specifications: Lumilum 3 Zone LED Wall Controller Spec Sheet
An LED Wall Controller can be used for any low voltage application where multiple zones of color control are needed. This unit handles up to 3 zones and is often used in projects for:
